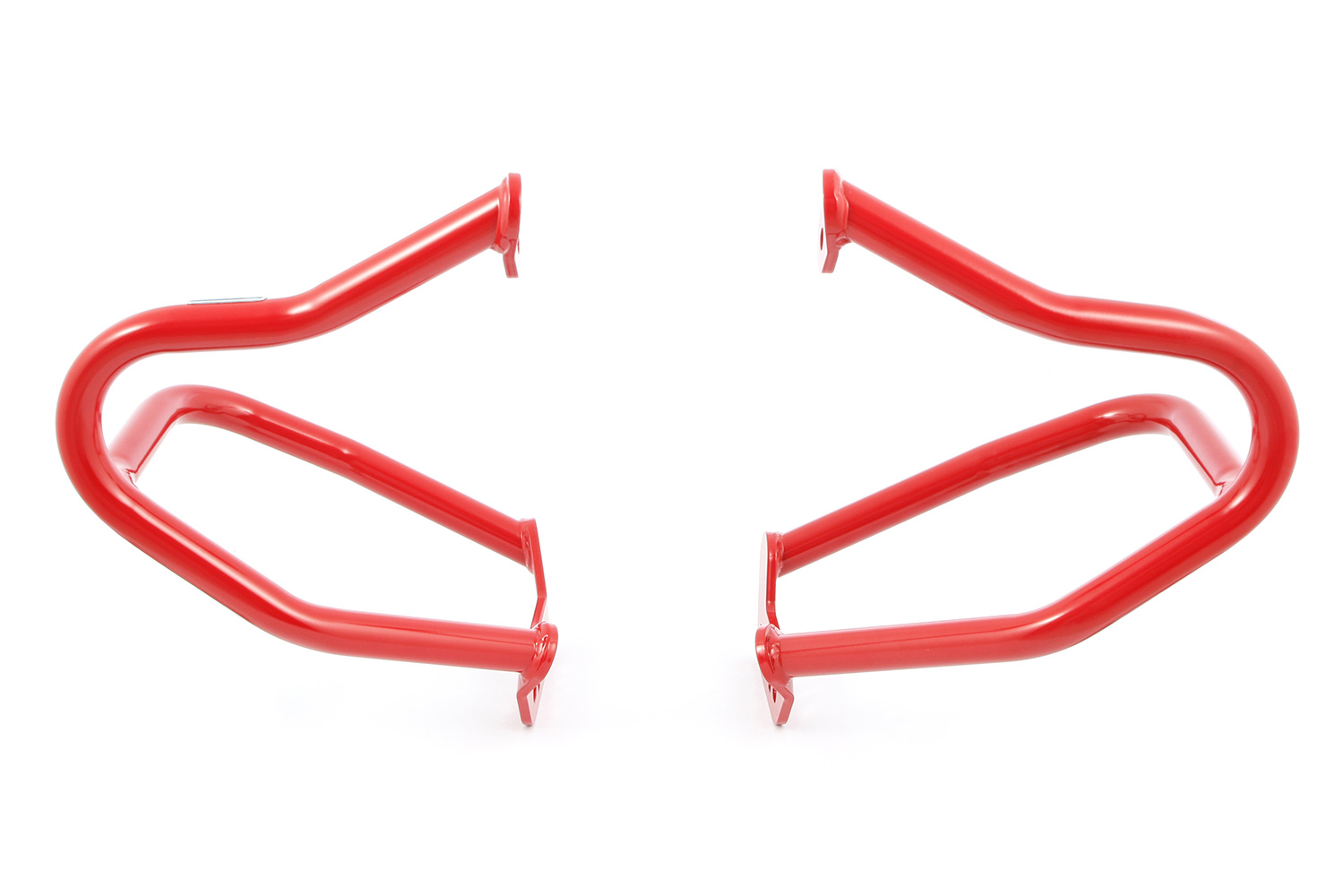

Wunderlich Engine Protection Bar GUARD BMW R 12 - red

Wunderlich Engine Protection Bars GUARD -

Perfect, effective protection for the engine of BMW R 12 models

Function and product features

• The Wunderlich GUARD engine protection bars for the R 12 models offer the perfect balance between maximum protection and low weight

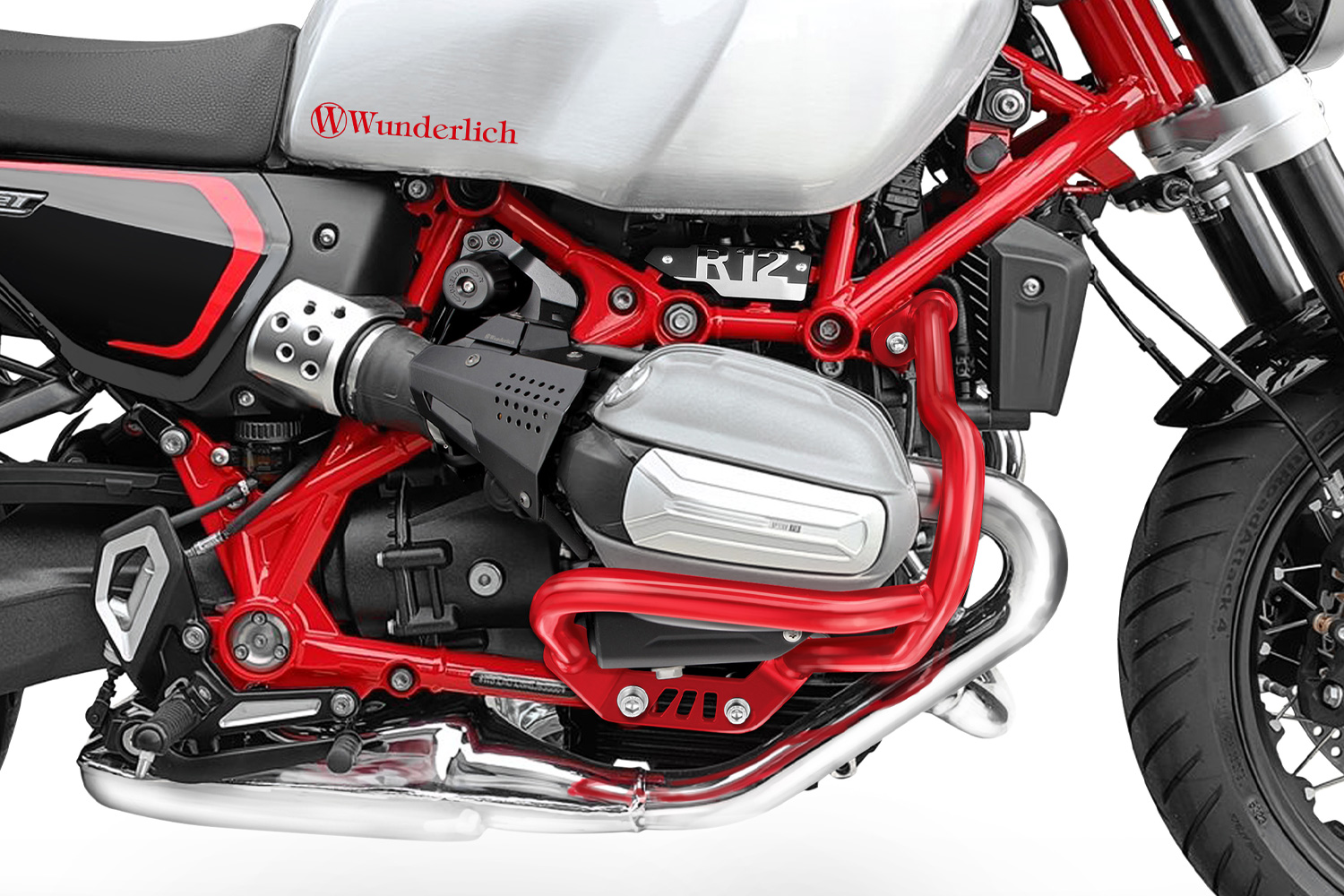

• Carefully integrated, discreet design aligned with the contour of the boxer engine
• The proven, compact construction impresses with high component rigidity and effective protection
• Reliable protection of cylinders, cylinder heads and valve covers reduces the risk of costly damage to the motorcycle
• Reduction of force and torque peaks through even distribution across three mounting points per side
• No restriction of ground clearance or lean angle
• The colour, matched to the red frame, creates a striking visual accent
• No need to remove the bars for maintenance work

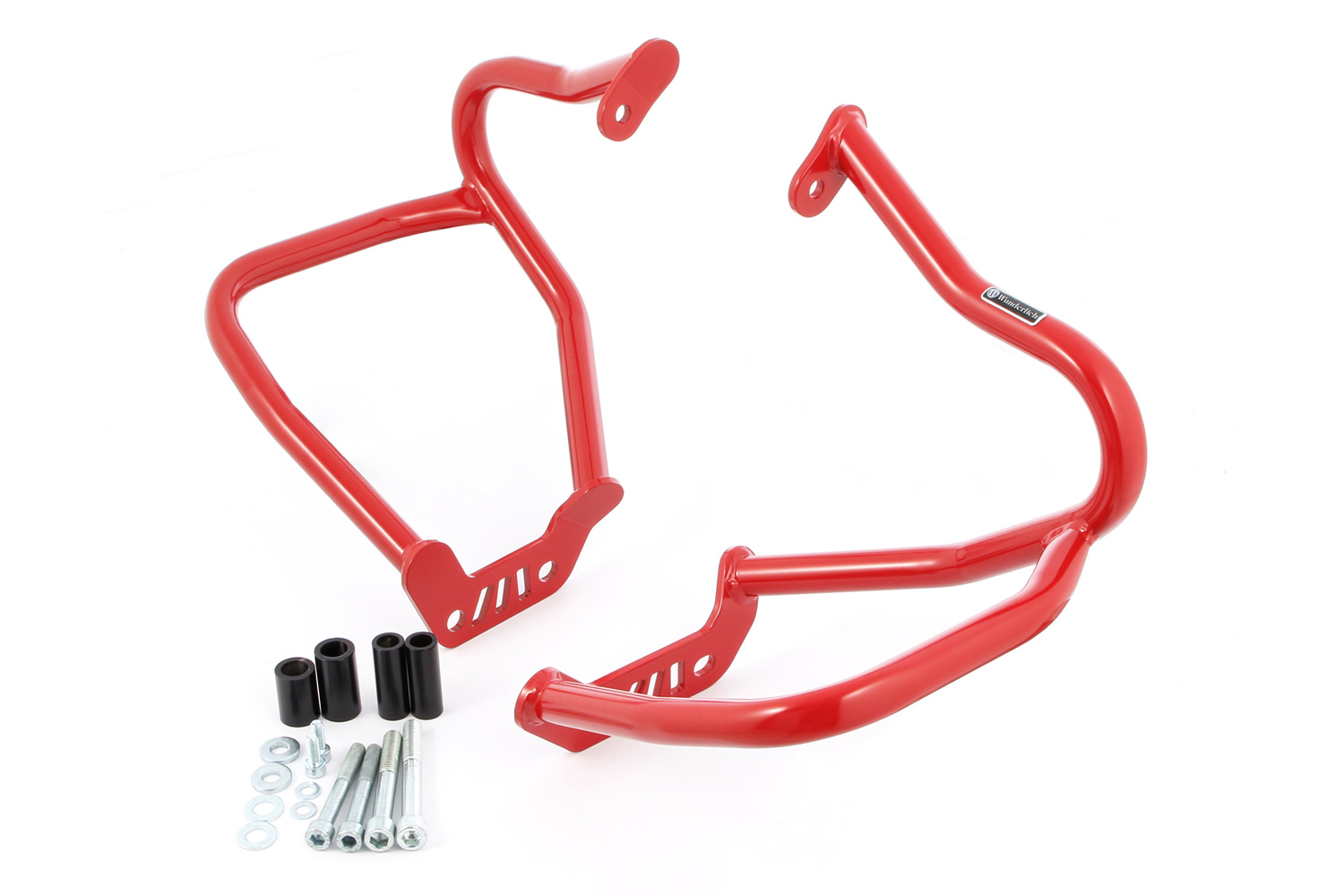

• Plug & Play fit: easy installation including mounting hardware and detailed instructions

Note and recommendation
Our extension kit for the engine protection bars (#31475-002) enables combined installation of the Wunderlich GUARD engine protection bars with

• Wunderlich valve cover & cylinder protectors (#36611-002)

The two halves of the engine protection bars are moved outward, creating the necessary space for the protectors.

Technical data

• Material
  • High-quality precision steel tubing with high tensile strength and elongation at break, carefully handcrafted, precisely formed radii using CNC tube bending machines, clean weld seams, precise connections, red powder-coated
• Dimensions
  • Tube diameter 25 millimetres
• Colour
  • Red – matched to the red frame of the R 12 models

Your Wunderlich advantages

• Wunderlich premium product. Small series. Handmade
• Wunderlich design. Integrated and functional.
• Made in Germany
• Tested by Wunderlich
• Wunderlich 60/5
  • 60-day return policy – test risk-free!
  • Plus 5-year warranty.

These GUARD engine protection bars offer the perfect balance between maximum protection and low weight

The development of these Wunderlich GUARD engine protection bars focused on achieving the ideal balance between maximum protection and minimal weight.

The compact component geometry reliably protects cylinders, cylinder heads and valve covers without restricting ground clearance or lean angle. The two-part bars fit closely and gain additional stability and rigidity from their specific structure – while maintaining optimised weight. The bars on the right and left sides are securely bolted to three selected existing mounting points each. In the event of a fall or tip-over, the forces are optimally distributed via the bar structure to the load-bearing mounting points, avoiding force and torque peaks and effectively reducing material stress. The proven all-round protection concept increases passive safety and enhances riding enjoyment.

The engine protection bar structure is made of 25 mm precision steel tubing. The tube segments are formed on CNC tube bending machines and then cleanly welded.

Visually, the protection bars integrate seamlessly into the motorcycle design. The red powder-coated finish, matched to the frame, enhances the look of the R 12 models with a striking appearance.
