TRACTIVE SUSPENSION
INFORMATION & FAQs ABOUT OUR PARTNER'S SUSPENSION COMPONENTS
SPRING PRELOAD – FOR ADJUSTING VEHICLE HEIGHT DEPENDING ON LOAD

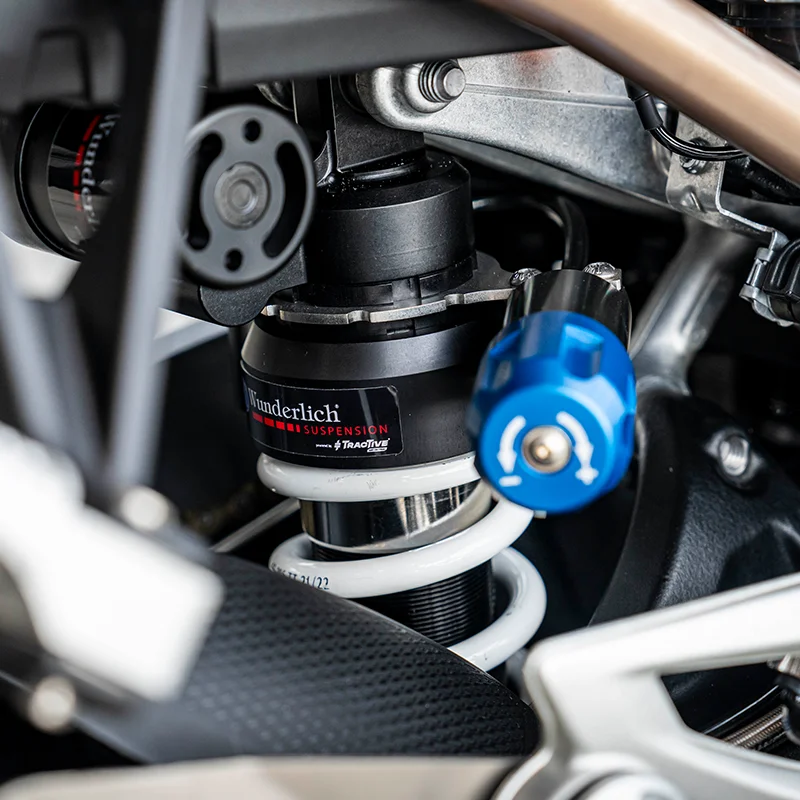

HPA
HYDRAULIC PRELOAD ADJUSTER (HYDRAULIC SPRING PRELOAD ADJUSTMENT)
The shock absorber is equipped with a sealed, robust hydraulic spring preload adjustment system. The preload is adjusted continuously with an easy accessible handwheel. The generous adjustment range can compensate for a wide range of load conditions.
EPA
ELECTRONIC PRELOAD ADJUSTER (ELECTRONIC SPRING PRELOAD ADJUSTMENT)
The shock absorber is equipped with a sealed, robust stepper motor drive for adjusting the spring preload. Unlike many original electronic shock absorbers, the stepper motor inside the damper is optimally protected from water or dirt ingress. The robust preload adjustment device withstands the toughest conditions. The generous adjustment range can compensate for a wide range of load conditions. In principle, this is a type of self-leveling system that always ensures correct ground clearance.
MANUAL
MANUAL ADJUSTMENT OF SPRING PRELOAD
The spring preload can be adjusted step by step to the load with the supplied suspension tool for all shock absorbers not equipped with HPA or EPA.
DAMPING COMPONENTS AND ADJUSTMENT
E - ADAPTIVELY CONTROLLED AND REGULATED DAMPING DDA
The adaptive, electronically controlled and regulated version of our shock absorbers
The shock absorber is equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance, raising responsiveness to a whole new level. It can be electronically connected to the motorcycle plug & play without any further adjustments. The shock absorber is fully compatible with the motorcycle's control unit and processes its control signals. The desired riding mode can be selected and set conveniently and as usual via the handlebar controls. Compared to stock suspension, the DDA damping valve has a larger adjustment range and regulates significantly faster at 6-10 milliseconds. The compression adjustment additionally allows individual fine-tuning of the damping with the suspension tool.

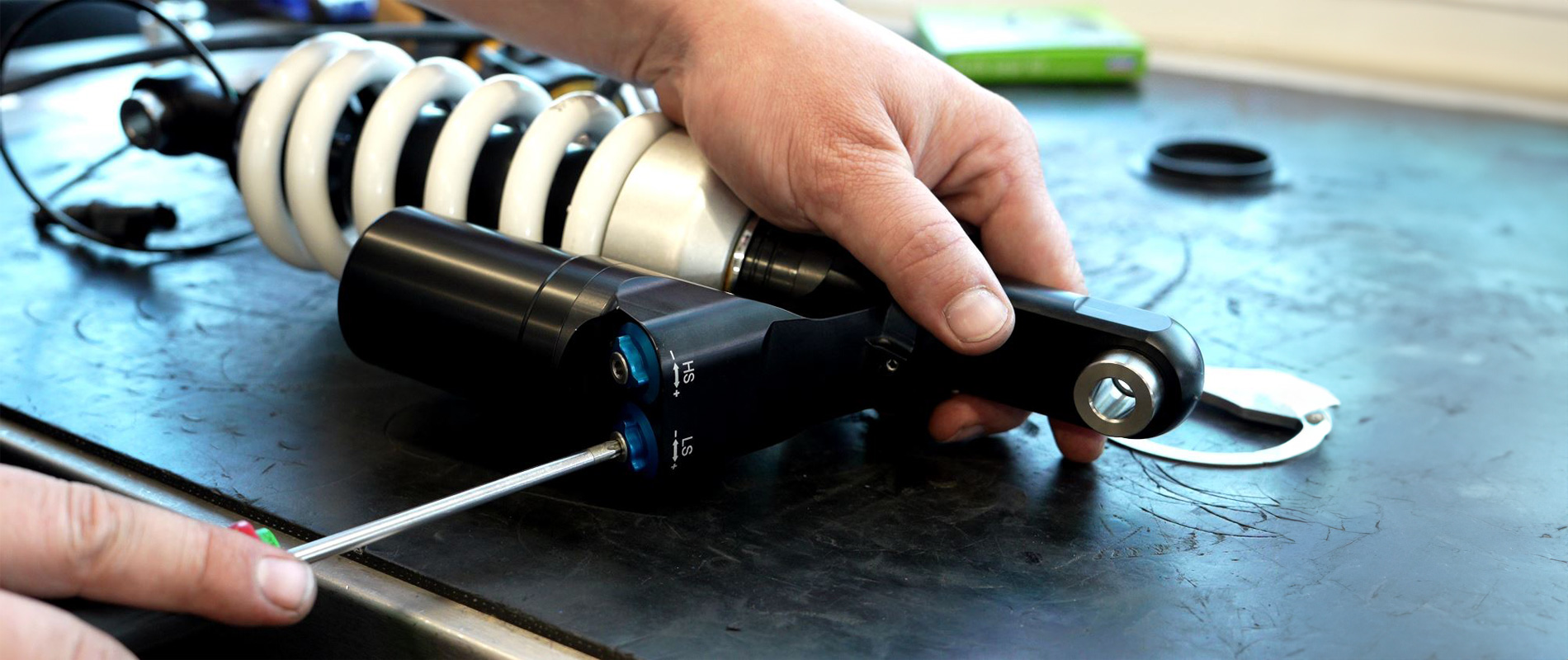

HIGH AND LOW-SPEED COMPRESSION STAGE ADJUSTMENT
Some shock absorbers have high and low-speed compression damping adjustment, meaning the compression damping can be tuned depending on the speed of the compression stroke (or the speed at which the damping piston moves during the stroke).
PURELY MECHANICAL ADJUSTABLE DAMPING
All non-adaptive shock absorbers without DDA offer a wide range of compression and rebound damping adjustment with 18 clicks, allowing you to calibrate your individually balanced damping setup. It's helpful that each click causes a noticeable change in damping.
PROTECTION AGAINST BOTTOMING OUT
PDS System (Position-Dependent Damping System)
Shock absorbers equipped with the PDS system against bottoming out feature a second integrated damping piston that forms an additional damping stage at high compression speeds – for example, during a short, hard compression through a pothole. The PDS system can therefore help to reduc the stress on the motorcycle frame.

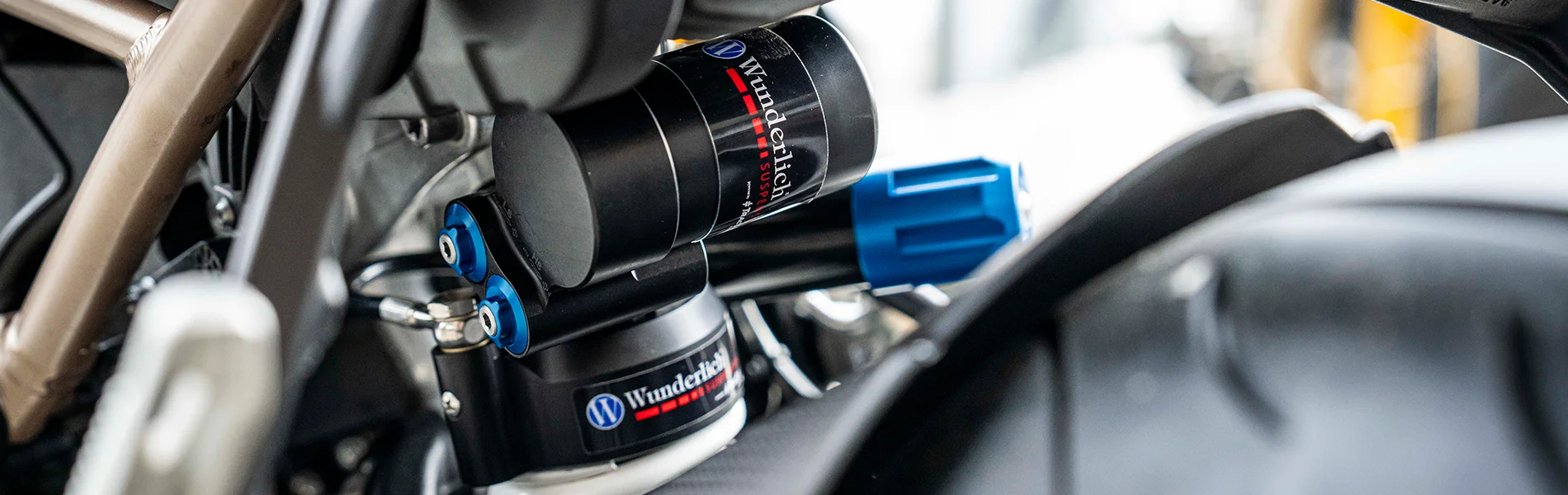

EXTERNAL RESERVOIR
SHOCK ABSORBERS FOR EXTREME ADVENTURE USE
PRO SHOCK ABSORBER
The PRO shock absorbers are the best shock absorbers for extreme adventure use. They are built even more robustly and their responsiveness is optimized due to the selected components and seals with reduced friction. The PRO versions are available for the Adventure shock absorbers S2, eS2, and S4.
WARRANTY
5-year warranty if the 24-month maintenance intervals are adhered to.
THE WUNDERLICH SUSPENSION COMPONENTS POWERED BY TRACTIVE
S3 Adventure Shock Absorber Line
TOURING
THE S1 SHOCK ABSORBER LINE – FOR TOURING RIDERS
For touring riders who usually ride with the same damping setting.
The S1 shock absorber, as a high-quality all-round shock absorber, is the first choice if you want to optimize your standard suspension or replace the outdated suspension with a higher-quality one. the S1 shock absorber is especially set up for the respective vehicle model. The shock absorber is particularly suitable for touring riders who generally ride with the same damping settings and only adjust the spring preload when necessary.
The shock absorber excels in providing excellent, transparent feedback, optimizing tire-road interaction of the rear tire, wheel control, and reduces tire wear. The balanced, sensitive damping behavior of our suspension components ensures a neutral, predictable driving behavior and supports confidence in your own motorcycle and thus personal riding pleasure.
The electronic version of the S1 shock absorber is the eS1 shock absorber. The shock absorber is equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired driving mode is done conveniently and as usual via the handlebar controls.
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
EQUIPMENT VARIANTS
- Adaptive, electronic plug & play damping with the patented TracTive DDA damping valve (Dynamic Damping Adjustment)
- Hydraulic or electronic spring preload adjustment
THE FOLLOWING SHOCK ABSORBER VERSIONS ARE AVAILABLE
- S1
- S1 HPA
- eS1
- eS1 HPA
- eS1 EPA
THE MODULAR RETROFIT SOLUTION
THE S2 SHOCK ABSORBER LINE
The S2 shock absorber line is an integrated, modular retrofit solution. Except for the standard electronic spring preload (EPA), all other components are replaced by TracTive high-performance components.
S2 is an integrated modular retrofit solution for suspensions that combines TracTive high-performance components with original parts. More and more motorcycles are equipped with a standard adaptive, electronic spring preload (EPA), which adjusts the spring preload depending on the load condition.
The S2 components combine a high-performance shock absorber with the manufacturer's original preload unit. The S2 shock absorbers are constructed in the same way as our other products, with one exception: the shock absorber cylinder is made of high-strength steel. This keeps the outer diameter of the tube compatible with the original preload unit but can accommodate the 46 mm TracTive high-flow piston.The adaptive, electronic version of the S2 shock absorber is the eS2 shock absorber. The shock absorber is equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired driving mode is done conveniently and as usual via the handlebar controls.
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
- Emulsion or separate oil and gas*
- Adjustable compression & rebound damping (S2 PRO + S2 PRO PDS)
- Standard EPA
EQUIPMENT VARIANTS
- External reservoir for optimal cooling
- High and low-speed damping adjustment
- ST specification for sport and touring riders
- PDS bottoming-out protection for adventure riding
- PRO – specification for adventure riding
- The PRO shock absorbers are the best shock absorbers for extreme use. They are built even more robustly and their responsiveness is optimized due to the selected components and seals with reduced friction
- PDS bottoming-out protection
THE FOLLOWING SHOCK ABSORBER VERSIONS ARE AVAILABLE
- S2 PRO PDS
- eS2
- eS2 ST
- eS2 PRO
- es2 PRO PDS
SPORT + TOURING
S3-SPORT SHOCK ABSORBER LINE
Developed for the high demands of ambitious sport and touring riders, as well as for riders who desire extra safety reserves
The shock absorber excels in providing excellent, transparent feedback, optimizing tire-road interaction of the rear tire, wheel control and reduces tire wear. The balanced, sensitive damping behavior of our suspension components ensures neutral, predictable handling and supports confidence in your motorcycle, enhancing personal riding pleasure.
The separate high and low-speed compression damping adjustment allows individual fine-tuning of the shock absorber to your personal needs and requirements. Additionally, the shock absorber offers the ability to control oil flow during the compression phase, meaning during compression, through two separate adjusters that regulate damping at low damping speeds (slow undulations on the track/road) and high damping speeds (sudden bumps or potholes). The 18-click rebound damping adjustment allows individual fine-tuning of the damping with the supplied suspension tool. The extensive options for individual adjustment of compression and rebound meet the high demands of sport and touring riders, enhancing both comfort and safety.
The electronic version of the S3-Sport shock absorber is the eS3-Sport shock absorber. The shock absorbers are equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired riding mode is done convenient and as usual via the handlebar controls.
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
- External reservoir for optimal cooling
- Separate high and low-speed damping adjustme
EQUIPMENT VARIANTS
- Adaptive, electronic plug & play damping with the patented TracTive DDA damping valve (Dynamic Damping Adjustment)
- HPA - Hydraulic or electric spring preload adjustment depending on the variant version
FOLLOWING SHOCK ABSORBER VERSIONS ARE AVAILABLE
- S3-Sport
- S3-Sport HPA
- eS3-Sport
- eS3-Sport HPA
- eS3-Sport EPA
ADVENTURE + TOURING
S3-ADVENTURE SHOCK ABSORBER LINE
High-performance shock absorber for demanding adventure and touring riders, as well as for riders who desire extra safety reserves and want to upgrade or replace their suspension with the latest generation.
The shock absorber scores with excellent, transparent feedback, optimizing tire-road interaction of the rear tire, wheel control while reducing tire wear. The balanced, sensitive damping behavior of our suspension components ensures neutral, predictable handling and supports confidence in your motorcycle, enhancing personal riding pleasure.
The electronic version of the S3-Adventure shock absorber is the eS3-Adventure shock absorber. The eS3-Adventure shock absorbers are equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired riding mode is done conveniently and as usual via the handlebar controls.
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
- External reservoir for optimum cooling
- Separate high and low-speed damping adjustment
EQUIPMENT VARIANTS
- Adaptive, electronic plug & play damping with the patented TracTive DDA damping valve (Dynamic Damping Adjustment)
- HPA - Hydraulic or electric spring preload adjustment depending on the variant
FOLLOWING SHOCK ABSORBER VERSIONS ARE AVAILABLE
- S3-Adventure HPA
- eS3-Adventure EPA
- eS3-Adventure Front (Telelever)
ADVENTURE + TOURING
S4-ADVENTURE SHOCK ABSORBER LINE
High-performance shock absorber for demanding adventure riders who frequently venture off-road, and touring riders who regularly carry heavy loads, as well as for riders who desire extra safety reserves and want to renew their outdated suspension or upgrade to the latest generation.
The shock absorber scores with excellent, transparent feedback both on and off-road, optimizing the interaction of the rear tire with the terrain, wheel control, while reducing tire wear. The balanced, sensitive damping behavior of our suspension components ensures neutral, predictable handling regardless of terrain, supporting confidence in your motorcycle and enhancing personal riding pleasure.
The adaptive, electronic version of the S4-Adventure shock absorber is the eS4-Adventure. The shock absorbers are equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired driving mode is done conveniently and as usual via the handlebar controls.
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
- External reservoir for optimal cooling
- PDS bottoming-out protection for adventure riding
- Separate high and low-speed damping adjustment
- HPA - Hydraulic spring preload adjustment
EQUIPMENT VARIANTS
- Adaptive, electronic plug & play damping with the patented TracTive DDA damping valve (Dynamic Damping Adjustment)
- Hydraulic or electronic spring preload adjustment
- PRO - Specification for adventure riding: the best shock absorbers for extreme use. Robustly built, optimized responsiveness, reduced friction through selected components and seals.
FOLLOWING SHOCK ABSORBER VERSIONS ARE AVAILABLE
- S4-Adventure
- S4-Adventure Pro
- S4-Adventure HPA
- S4-Adventure PRO HPA
- S4-Adventure EPA
- eS4-Adventure EPA
SPORT + TOURING

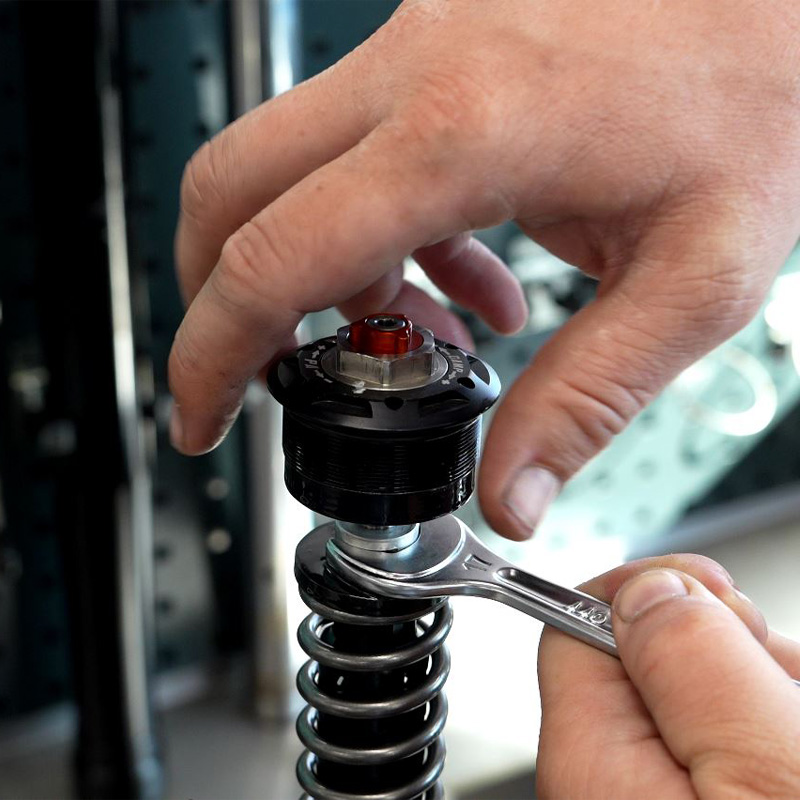

C3-SPORT CARTRIDGE SET
High-performance cartridge set of the latest generation as an upgrade or replacement for the stock suspension. Developed for the high demands of ambitious sport and touring riders, as well as for riders who desire extra safety reserves.
The electronic version of the C3-Sport cartridge set is the eC3-Sport cartridge set, equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired driving mode is done conveniently and as usual via the handlebar controls.
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
- Closed damping system
- Generous piston diameter of 35 mm
- Highest quality materials
EQUIPMENT VARIANTS
- Adaptive, electronic plug & play damping with the patented TracTive DDA damping valve (Dynamic Damping Adjustment)
FOLLOWING CARTRIDGE SET VERSIONS ARE AVAILABLE
- C3-Sport Cartridge-Set
- eC3-Sport Cartridge-Set
ADVENTURE + TOURING

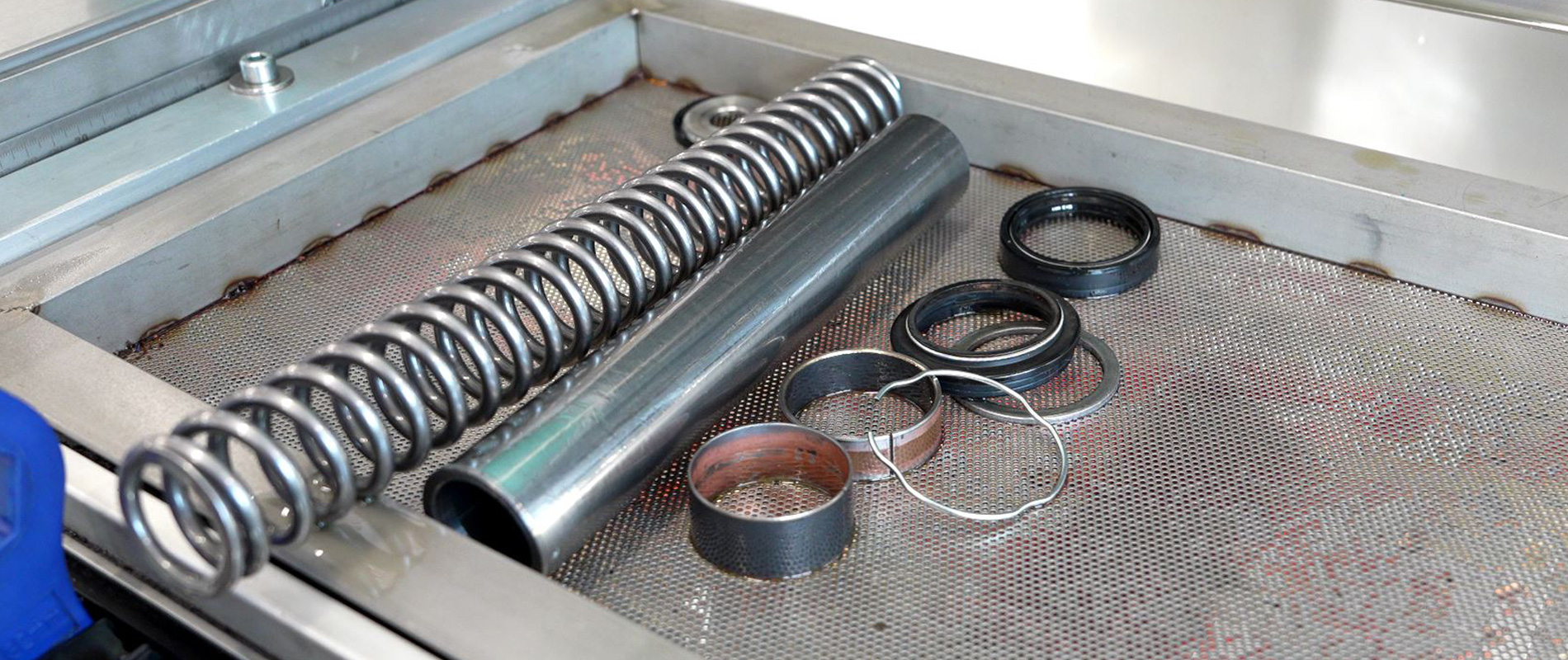

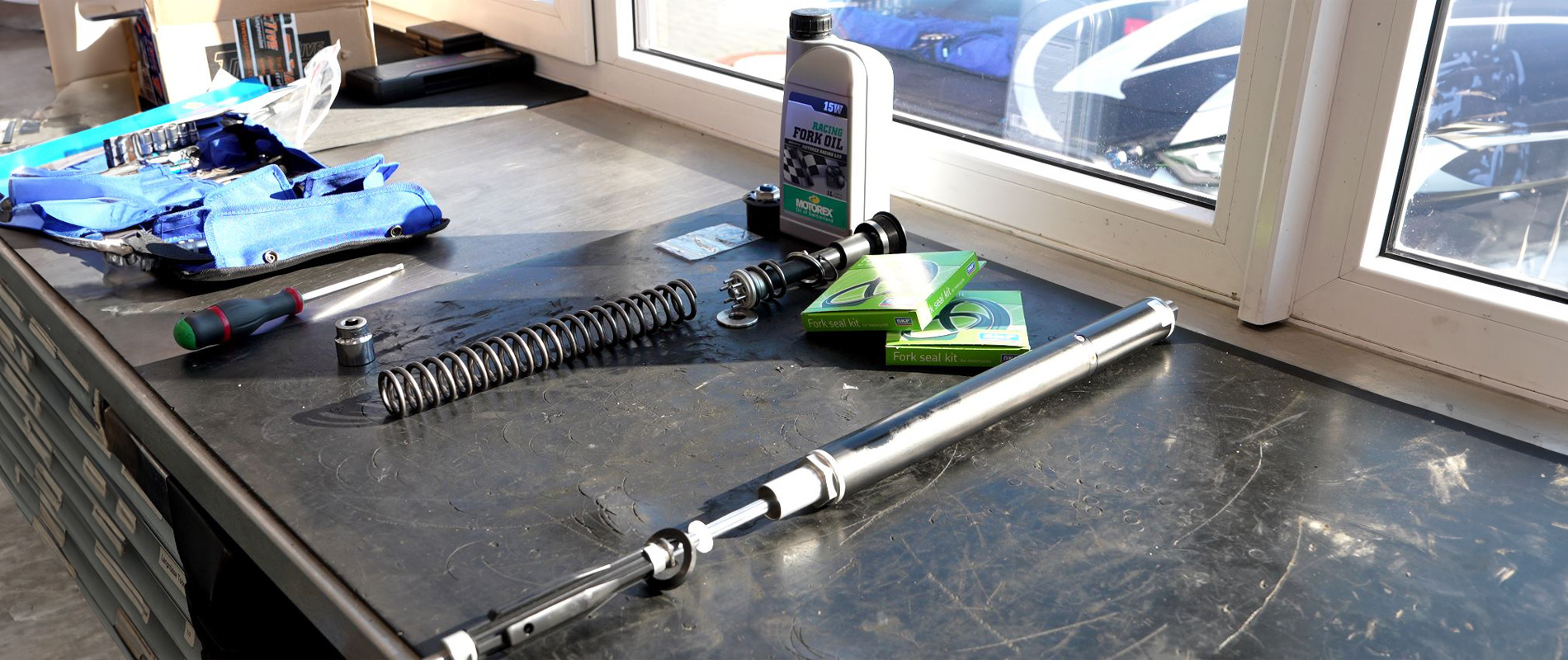

For frequent off-road use and regularly carrying heavy loadsC4 CARTRIDGE SET
High-performance cartridge set of the latest generation as an upgrade or replacement for the stock suspension. Developed for the high demands of ambitious adventure riders who frequently venture off-road, and touring riders who regularly carry heavy loads, as well as for riders who desire extra safety reserves. With PDS system, a second damping stage that reduces the risk of bottoming out.
The set scores with excellent, transparent feedback, optimizing the interaction of the front tire with the underground, wheel control regardless of the terrain, while reducing tire wear. The balanced, sensitive damping behavior of our suspension components ensures neutral, predictable handling regardless of terrain, supporting confidence in your motorcycle and enhancing personal riding pleasure.
The electronic version of the C4 cartridge set is the eC4 cartridge set, equipped with the patented TracTive DDA damping valve (Dynamic Damping Adjustment), which scores with its convincing damping dynamics and impressive performance. It can be electronically connected to the motorcycle plug & play without any further adjustments. The selection and adjustment of the desired driving mode is done conveniently and as usual via the handlebar controls.
The excellent quality of this cartridge set is also evident in the fact that it can be fully serviced. So you'll enjoy it for a long time!
TECHNICAL HIGHLIGHTS
- The spring rate of the spring is selected individually based on your personal riding profile specifications
- Closed damping system
- Generous piston diameter of 35 mm
- Highest quality materials
EQUIPMENT VARIANTS
- Adaptive, electronic plug & play damping with the patented TracTive DDA damping valve (Dynamic Damping Adjustment)
FOLLOWING CARTRIDGE SET VERSIONS ARE AVAILABLE
- C4 Cartridge-Set
- eC4 Cartridge-Set

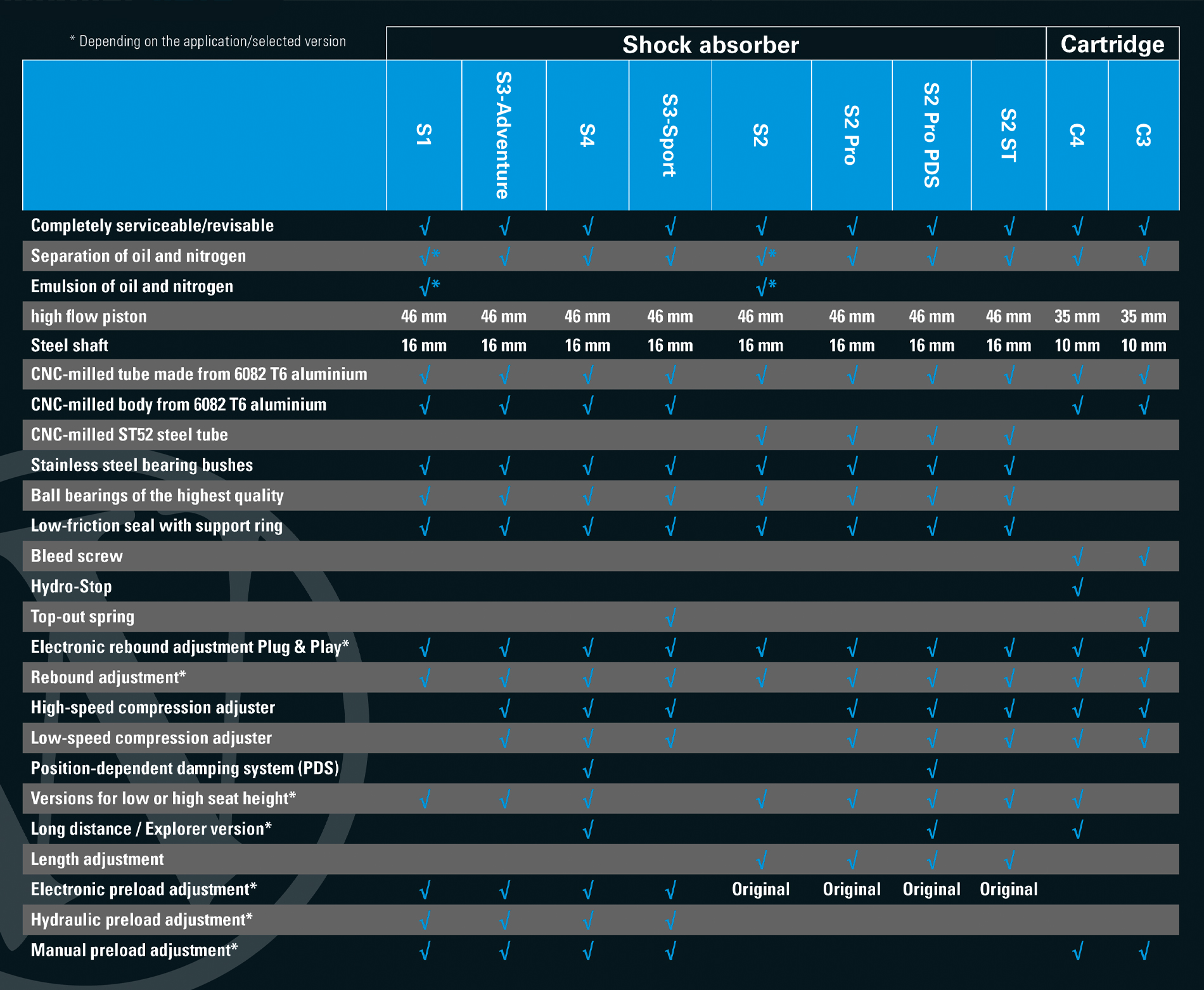

TECHNICAL DATA
